Z-SPARS - MAINSAIL ENTRY...
Plastic mainsail gate slide stop assembly fits Z-Spars Z301/701 mast sections. Sliding stop includes a 5 mm thumbscrew which locks into a hole drilled at the top of the gate cut-out. Slide stop is 85 mm long x 16 mm wide.

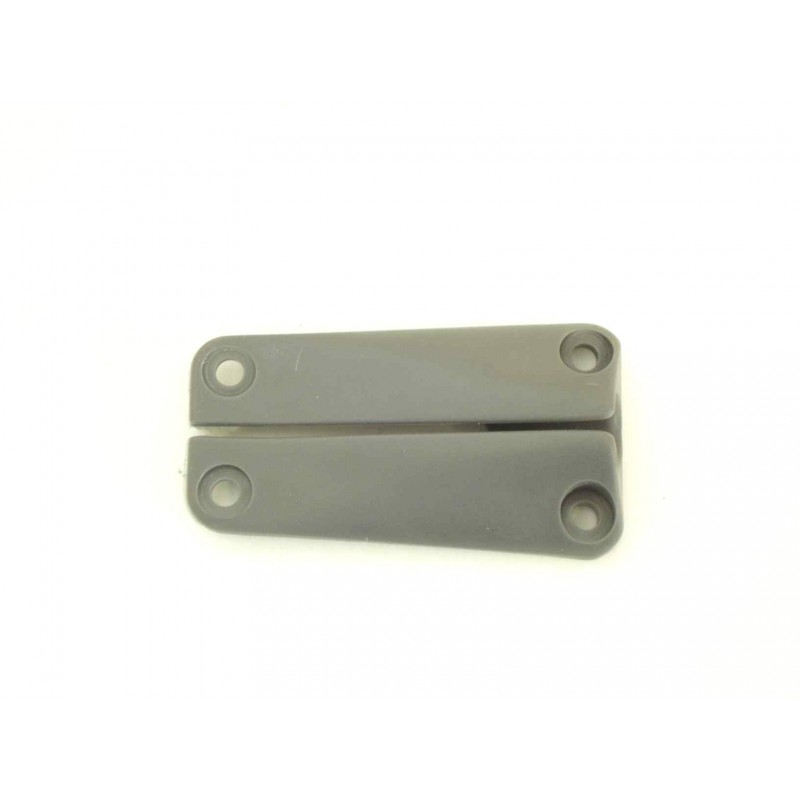

Gray plastic mainsail feeder entrance is used on all Z-Spars mast sections that use a boltrope luff. Unit is 80mm high x maximum 45mm wide and fastens with 3/16" rivets or screws. Fasteners are on 65mm vertical x 30 mm (lower) x 23mm (upper) hole centers.
Plastic mainsail gate slide stop assembly fits Z-Spars Z301/701 mast sections. Sliding stop includes a 5 mm thumbscrew which locks into a hole drilled at the top of the gate cut-out. Slide stop is 85 mm long x 16 mm wide.
