Z-SPARS - ANODISED PROFILE FOR Z95 SPREADER (PER METER)

€79.03
Tax included
987

Anodized aluminum profile for Z95 spreader type. Sold by the meter.

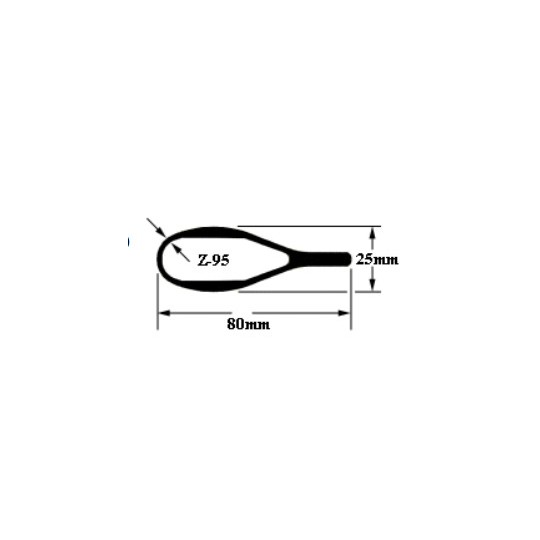

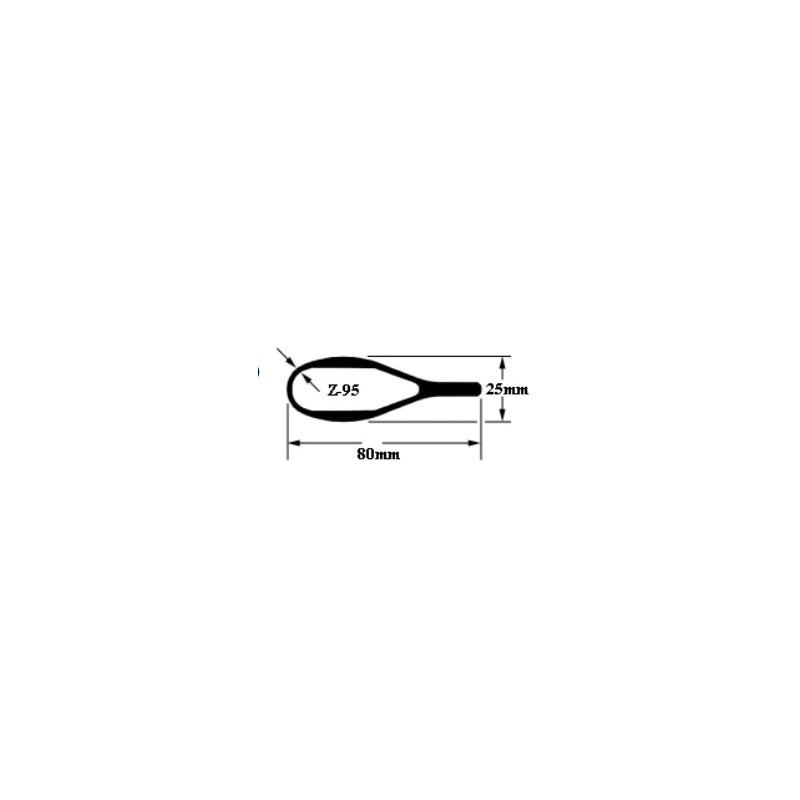

Z95 spreader profile dimensions:

Outside measurements (untapered): 80mm x 25mm

Inside measurements: 52mm x 17mm

Wall thickness: 2mm

Weight/m.: 1.25kg

The Z95 spreader section features an integral "tail", so that the spreaders (as an option) can be tapered at the outboard end without welding. Z95 spreader assemblies are available in standard (untapered) and tapered versions with a variety of inboard and outboard end fittings.
